Also see: Cosmic Microwave Background Radiation (CMBR or CMB)

By AI, a compilation of sources

The Cosmic Microwave Background (CMB) power spectrum is a crucial tool in modern cosmology, providing a detailed picture of the early universe and key information about its composition and evolution.

What is the CMB Power Spectrum?

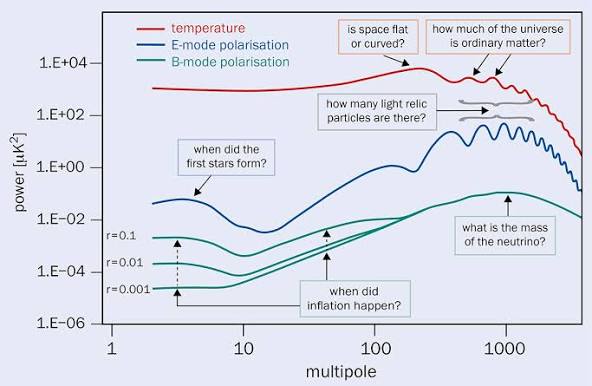

It is typically plotted as the variance of the spherical harmonic coefficients (Cℓ) versus the multipole moment (ℓ), which represents the angular scale (larger ℓ corresponds to smaller angular scales)

It is a statistical representation of the temperature fluctuations (anisotropies) in the CMB, which is the leftover heat radiation from the Big Bang.

It quantifies the strength of these fluctuations as a function of their angular scale across the sky.

It is typically plotted as the variance of the spherical harmonic coefficients (Cℓ) versus the multipole moment (ℓ), which represents the angular scale (larger ℓ corresponds to smaller angular scales).

What does it tell us?

The CMB power spectrum reveals valuable information about the early universe through its characteristic peaks and troughs:

• Acoustic Peaks: The peaks and valleys in the power spectrum are the signature of sound waves that propagated through the hot, dense plasma of the early universe.
• Cosmological Parameters: The specific locations and heights of these peaks are sensitive to various cosmological parameters, including:
  • Curvature of the Universe: The position of the first peak indicates that the universe is flat, or very close to it.
  • Baryon Density: The relative height of the odd and even peaks provides information about the density of ordinary matter (baryons).
  • Dark Matter Density: The height of the third peak is particularly sensitive to the amount of dark matter in the universe.
  • Other Parameters: The power spectrum is also influenced by other cosmological parameters like the density of dark energy and the properties of the primordial fluctuations.

Why is it important?

• Evidence for the Big Bang: The CMB power spectrum is one of the strongest pieces of evidence supporting the Big Bang theory, as its characteristics align well with the predictions of the standard cosmological model.
• Snapshot of the Early Universe: The CMB offers a glimpse into the universe when it was only about 380,000 years old, providing a crucial snapshot of the conditions at that time.
• Constraints on Cosmological Models: By comparing the observed power spectrum to theoretical models, cosmologists can constrain the parameters of the standard cosmological model and test alternative theories.

________

In essence, the CMB power spectrum is like a cosmic fingerprint, encoding the fundamental properties and history of the universe in the patterns of its oldest light.

_____

In the context of spherical harmonics, the “variance” can refer to a couple of different things, depending on what is being analyzed:

1. Variance of the Spherical Harmonic Coefficients themselves:

• This refers to the uncertainty or variability in the estimated values of the spherical harmonic coefficients (e.g.Clmcap C sub l m end-sub𝐶𝑙𝑚 and Slmcap S sub l m end-sub𝑆𝑙𝑚) that represent a function defined on the sphere.
• When creating spherical harmonic models from data (like Earth’s magnetic field from satellite measurements), estimates of the variances of these coefficients are often included.
• These variance estimates are influenced by factors such as the data distribution, the fitting methods used, and the magnitude of the residuals (differences between the model and the data).
• It’s important to note that the accuracy of these variance estimates can be affected by various assumptions made during the modeling process. For instance, ignoring factors like serial correlation in data or improper handling of other signal sources can lead to inaccurate variance estimates.

2. Contribution to the Total Variance (Power Spectrum):

• When a function is expanded in terms of spherical harmonics, the power spectrum describes how the total variance (or power) of the function is distributed across different spherical harmonic degrees (ll𝑙).
• The term Slcap S sub l𝑆𝑙 is often used to represent the contribution to the variance (or power) as a function of degree ll𝑙, assuming the function has a zero mean.
• The power spectrum shows the strength of different spatial wavelengths of the function, for example the power of Earth’s magnetic field spherical harmonics varies with degree.
• There are also different conventions for representing the power spectrum, such as the total power per degree (Slcap S sub l𝑆𝑙) or the average power per coefficient at degree ll𝑙 (which is Sl/(2l+1)cap S sub l / open paren 2 l plus 1 close paren𝑆𝑙/(2𝑙+1)).

In summary:

The variance can also describe how the total power (or variance) of a function is distributed across different spherical harmonic degrees, as represented by the power spectrum. This helps understand the spatial characteristics of the function.

FIRST DRAFT: The variance of spherical harmonic coefficients describes the spread or dispersion of the coefficients in a spherical harmonic expansion. It provides information about the power distribution of the field being represented at different spatial scales and locations. Higher variance in certain coefficients suggests a stronger contribution from those corresponding spatial scales and locations.

The variance of spherical harmonic coefficients refers to the uncertainty in the estimated values of the coefficients themselves, which is important for evaluating the accuracy of spherical harmonic models.

Here’s a more detailed explanation:

1. What are spherical harmonics?

Spherical harmonics are a set of orthogonal functions defined on the surface of a sphere. They are analogous to Fourier series for functions on a circle, but for functions defined on a sphere. They are widely used in various fields like geodesy, geophysics, and astrophysics to represent functions that depend on latitude and longitude.

• Spherical harmonics – Wikipedia
• For a given value of ℓ, there are 2ℓ + 1 independent solutions of this form, one for each integer m with −ℓ ≤ m ≤ ℓ. These angular…
• Spherical harmonic analysis of a harmonic function given on a … * f ( R , θ , λ ) = ∑ n = 0 ∞ ∑ m = − n n f ― n m R Y ― n m ( θ , λ ) (4) * f ( u , β , λ ) = ∑ n = 0 ∞ ∑ m = − n n f ― n m u Y ―…Oxford Academic
• numerical methods for harmonic analysisSpherical harmonics are closely associated with the basic theory of gravitational and magnetic fields, such as those of the Earth …School of Earth Sciences
• Methods of Spherical Harmonic AnalysisThe time-averaged field therefore obeys Laplace’s equation at the surface of the Earth, and so spherical harmonic functions can be…Astrophysics Data System
• Spherical Harmonics | Brilliant Math & Science WikiSpherical harmonics are a set of functions used to represent functions on the surface of the sphere S 2 S^2 S2. They are a higher-Brilliant

2. How are spherical harmonics used? A function on the sphere can be expressed as a series of spherical harmonics, with each harmonic having a corresponding coefficient. These coefficients, often denoted as alma sub l m end-sub𝑎𝑙𝑚, where ‘l’ is the degree and ‘m’ is the order, determine the contribution of each harmonic to the overall function. The variance of these coefficients is crucial for understanding the spatial characteristics of the function.

• more realistic estimate of the variances and systematic errors …Summary. Most modern spherical harmonic geomagnetic models based on satellite data include estimates of the variances of the spher…Oxford Academic

3. What does the variance tell us? The variance of thealma sub l m end-sub𝑎𝑙𝑚 coefficients for a given degree ‘l’ (i.e., σl2=12l+1∑m=−llalm2sigma sub l squared equals the fraction with numerator 1 and denominator 2 l plus 1 end-fraction sum from m equals negative l to l of a sub l m end-sub squared𝜎2𝑙=12𝑙+1𝑙𝑚=−𝑙𝑎2𝑙𝑚) provides information about the power distribution across different spatial scales. A higher variance for a particular degree ‘l’ suggests that the corresponding spatial scales contribute more to the overall function.

• Variation of spherical harmonic power as a function of …Oct 27, 2006 — Abstract. The variation of power of the spherical harmonics of Earth’s magnetic field as a function of degree is well …AGU Journal
• spectrum() | SHTOOLS – Spherical Harmonic ToolsNotes. This function returns either the power spectrum, energy spectrum, or l2-norm spectrum. Total power is defined as the integr…GitHub Pages
• I was reading this page: Sample and Cosmic Variance. The section states that The multipoles Cℓ can be related to the expected value of the spherical harmonic coefficients by ⟨ℓ∑m=−ℓa2ℓm⟩=(2ℓ+1)Cℓ since there are (2ℓ+1) aℓm for each ℓ and each has an expected autocorrelation of Cℓ. In a theory such as inflation, the temperature fluctuations follow a Gaussian distribution about these expected ensemble averages. This makes the aℓm Gaussian random variables, resulting in a χ22ℓ+1 distribution for ∑ma2ℓm. The width of this distribution leads to a cosmic variance in the estimated Cℓ of (ΔCℓCℓ)cosmicvariance=√22ℓ+1 I don’t get how the cosmic variance is derived. Can someone explain it?Jun 21, 2016 — The key statement is that the aℓ,m are independent Gaussian random variables. For each ℓ, there are 2ℓ+1 of them. So t…Physics Stack Exchange

• Efficient 3D shape matching and retrieval using a concrete radialized spherical projection representationSpherical functions are then expressed by spherical harmonic coefficients by applying the spherical harmonics transform individual…ScienceDirect.com
• Variable altitude cognizant Slepian functions | GEM – International Journal on GeomathematicsOct 21, 2024 — where l is the spherical harmonic degree of the corresponding column and row.SpringerLink
• The cooperative IGS RT-GIMs: a global and accurate estimation of the ionospheric electron content distribution in real-timeOct 5, 2020 — spherical harmonic expansion, and M is the max order of spherical harmonic expansion. n,m are corresponding indices. Pn…ESSD Copernicus

4. Applications

• Geomagnetism: In geomagnetic field modeling, the variance of spherical harmonic coefficients reveals the spatial distribution of magnetic sources. For instance, the power spectrum of the Earth’s magnetic field shows a decrease with increasing degree, indicating that the core field is dominated by lower-degree terms.
• Climate Modeling: In climate studies, the variance of spherical harmonic coefficients can be used to analyze the spatial patterns of temperature or other climate variables.
• Cosmology: In cosmology, the variance of spherical harmonic coefficients of the Cosmic Microwave Background (CMB) radiation is related to the cosmic variance, which is the uncertainty in the estimated power spectrum due to the limited observable sky.

• To calculate the angular power spectrum Cl of the whole sky, one uses the variance of the coefficients of the spherical harmonics in the temperature fluctuation field. I.e. Cl=12l+1l∑m=−l(a∗lmalm) How does one calculate the Cl of a sub-set of the sky? Does one still decompose the temperature field in this sub-set into spherical harmonics and use the corresponding alm? This would seem inappropriate to me as the spherical harmonics are defined across the whole sky (surface of sphere) and would surely be a bad basis for a decomposition of the temperature field from a small section of the sky?Nov 28, 2014 — Indeed spherical harmonics are inappropriate, since they are not orthogonal on the restricted domain.
• Optimal Estimation of Spherical Harmonic Components from a …Abstract. An optimal estimation technique is presented to estimate spherical harmonic coefficients.

5. Cosmic Variance

A related concept is cosmic variance, which arises from the fact that we only observe a single realization of the universe. Because of this, the observed power spectrum will have an inherent uncertainty, even if we have perfect data. The cosmic variance is related to the variance of the spherical harmonic coefficients and decreases with increasing degree.

• Angular momentum operator – WikipediaCommutation relations involving vector magnitude Like any vector, the square of a magnitude can be defined for the orbital angular…Wikipedia

In summary, the variance of spherical harmonic coefficients provides valuable insights into the spatial characteristics and power distribution of functions represented using spherical harmonics. It is a fundamental concept in various scientific disciplines, including geophysics, climate science, and cosmology.

###
